Our 30 mm 12V permanent lights & app controller

Every Save on Lighting install uses our Maple Glow LED system: 30 mm RGBW pixel lights set into slim aluminum track under your soffit, run by a Wi-Fi and Bluetooth controller you use from your phone. Here are the specs and some of the patterns you can run.

Get my instant estimateCall 403-427-3925
Rainbow chasing pattern across a whole house roofline controlled by phone

30 mm 12V RGBW pixel lights

Each light has three SMD5050 LEDs with red, green, blue and a separate white chip, so you get rich colours and a true white. Every light is individually addressable, which is what makes chasing, rainbow and twinkle effects possible.

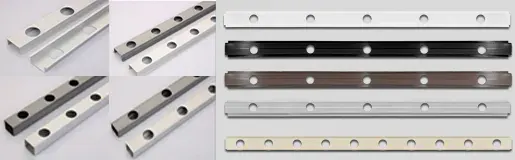

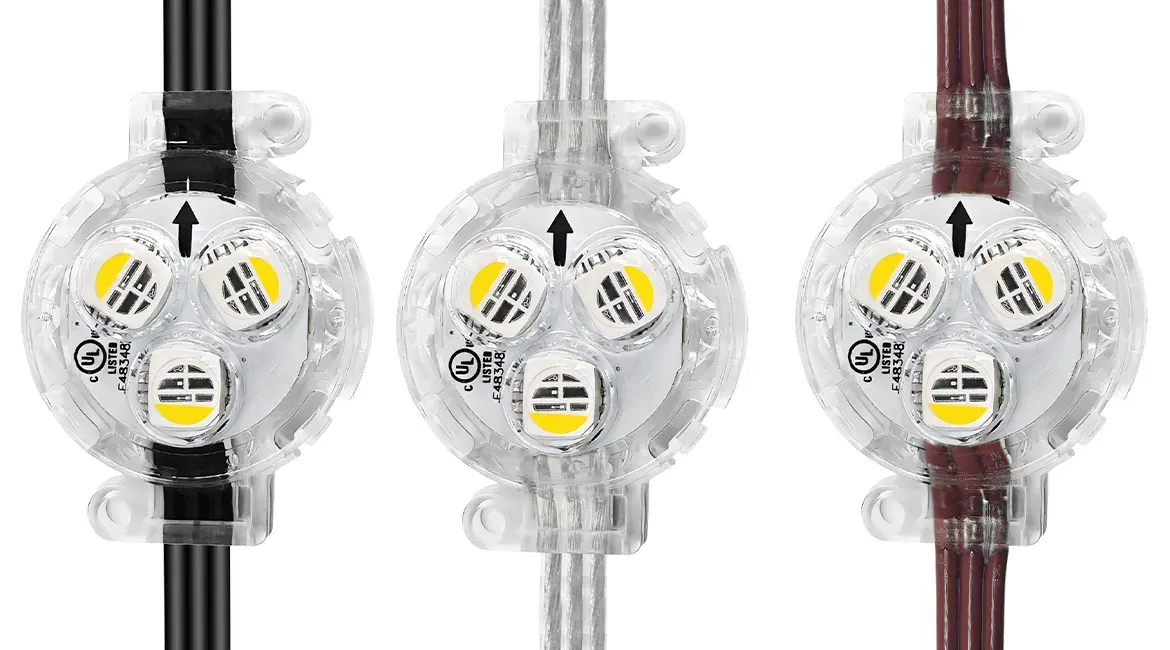

30 mm 12V RGBW permanent pixel lights with clear lens and black, white and brown cableAluminum mounting track for 30 mm pixel lights in several trim colours
Model line30 mm RGBW pixel light, 12V
Voltage12V DC (low voltage)
ColoursRGBW: full colour plus a dedicated white chip
LEDs per light3 x SMD5050
IC / chipUCS2904 (individually addressable for chasing effects)
Power0.96 W per light
Brightness100-120 lm per LED (manufacturer rating)
Light size42 x 32 x 15.5 mm
Mounting hole30 mm, fits standard 30 mm aluminum channel
Spacing5-10 lights per metre
Waterproof ratingIP68, sealed with waterproof connectors
Operating temperature-40 to 60 °C (-40 to 140 °F)
Rated lifespan50,000+ hours

Wi-Fi + Bluetooth app controller

The compact inline controller connects to your home Wi-Fi and to your phone over Bluetooth. Pick any colour, set brightness, choose a pattern, sync to music or set a schedule so the lights come on at dusk.

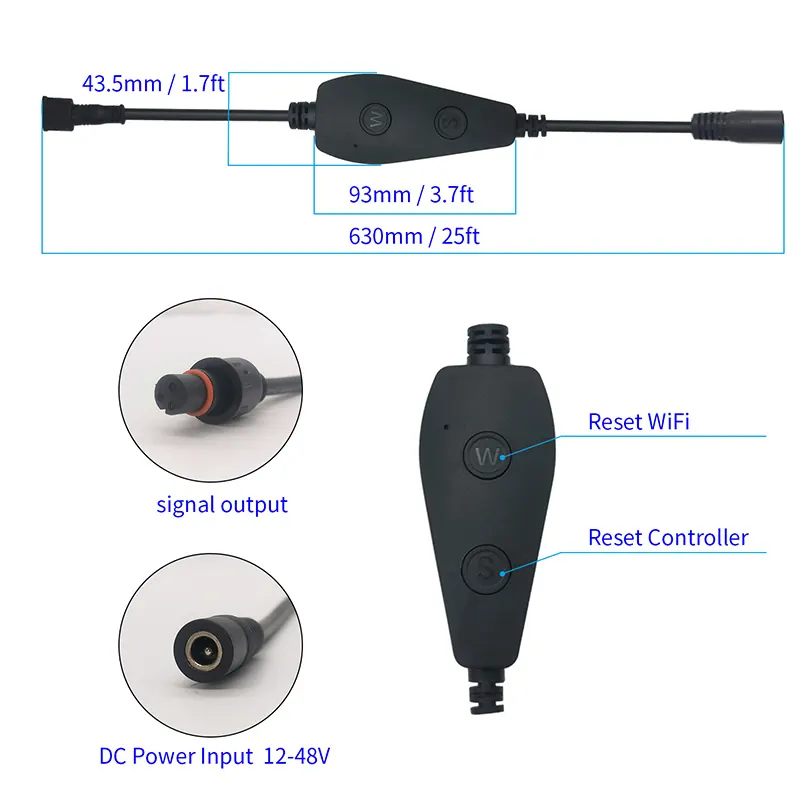

Inline Wi-Fi and Bluetooth controller with DC 12-48V power input, signal output, reset Wi-Fi and reset controller buttons
ControlWi-Fi, Bluetooth and 2.4G RF; app, music and voice control
InputDC 12-48V
Light typesRGB / RGBW pixel lights; multiple IC types supported
CapacityUp to 999 lights
AppColour picker (16.8 million colours), brightness, pattern modes, timers and schedules
ButtonsReset Wi-Fi, reset controller
SizeInline, 93 mm body, 630 mm overall with leads

Pattern & colour gallery

A few of the looks you can set from the app, from everyday warm white to full holiday chasing effects.

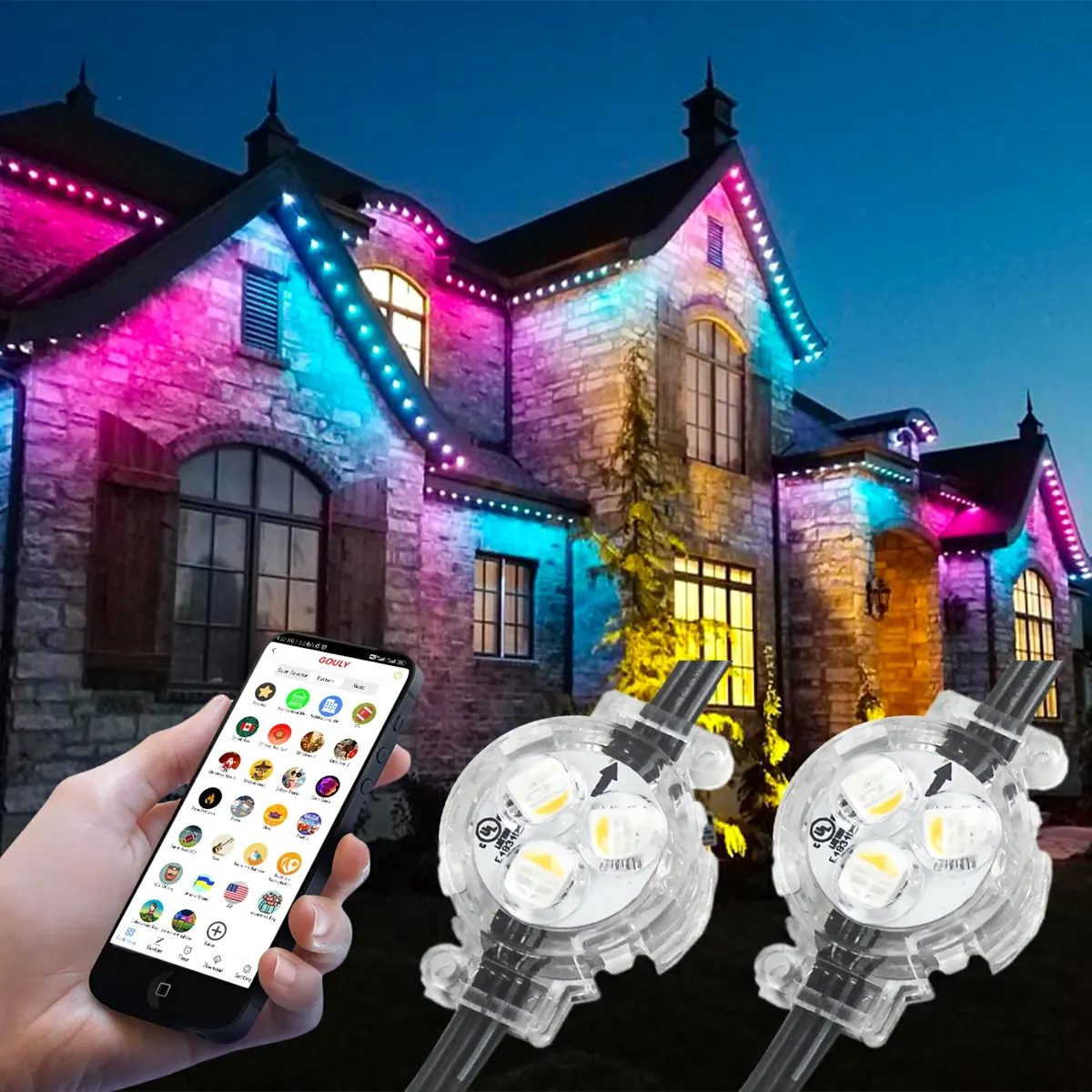

Multicolour pattern on a roofline chosen from the phone app
Multicolour pattern on a roofline chosen from the phone app

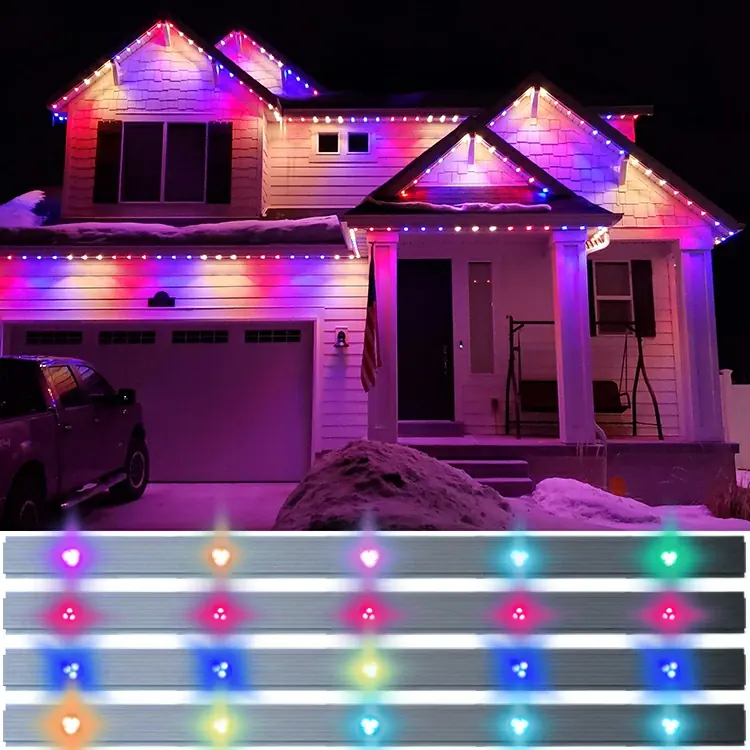

Pastel pink and blue permanent roofline lighting on a two-storey home at night
Pastel pink and blue permanent roofline lighting on a two-storey home at night

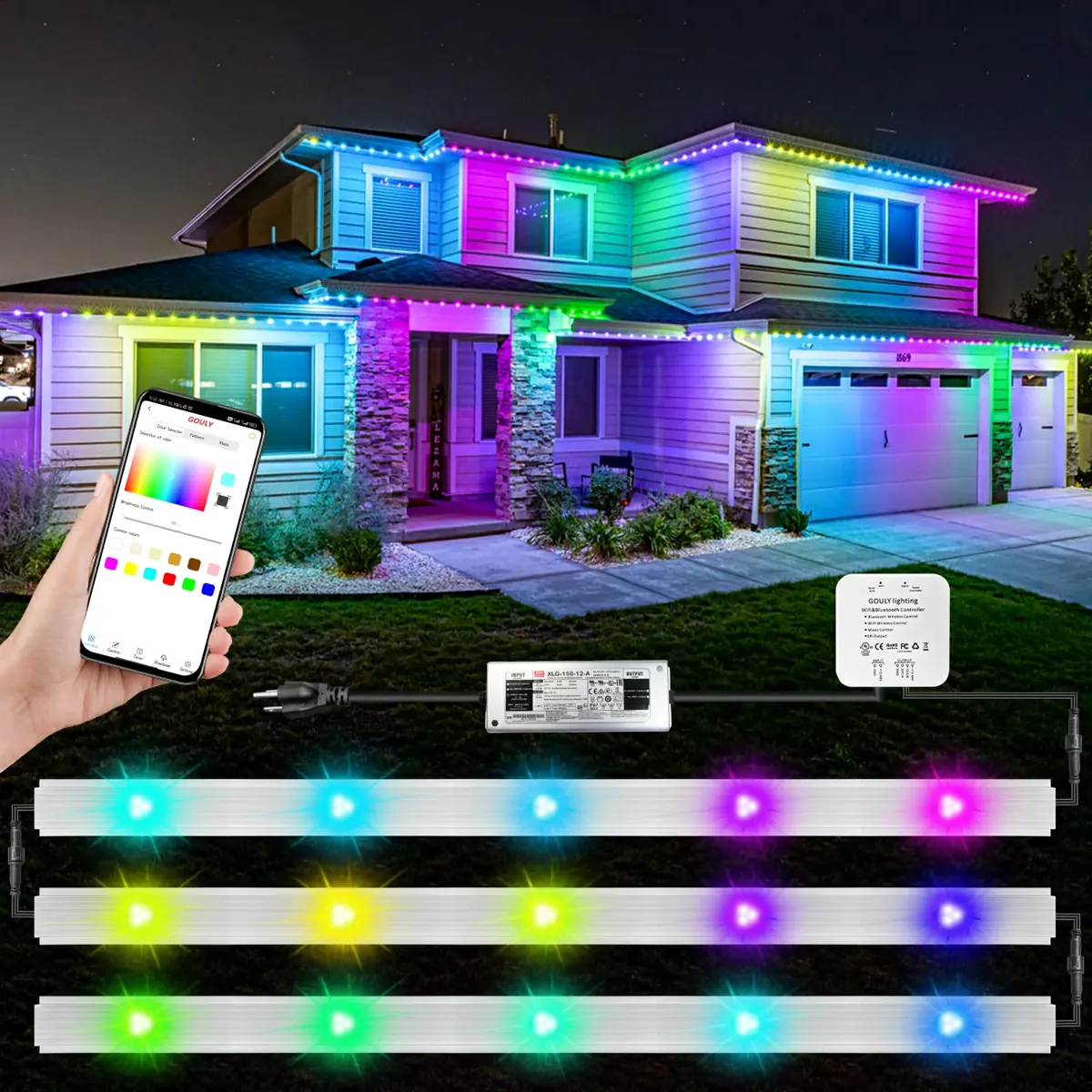

Rainbow chasing pattern across a whole house roofline controlled by phone
Rainbow chasing pattern across a whole house roofline controlled by phone

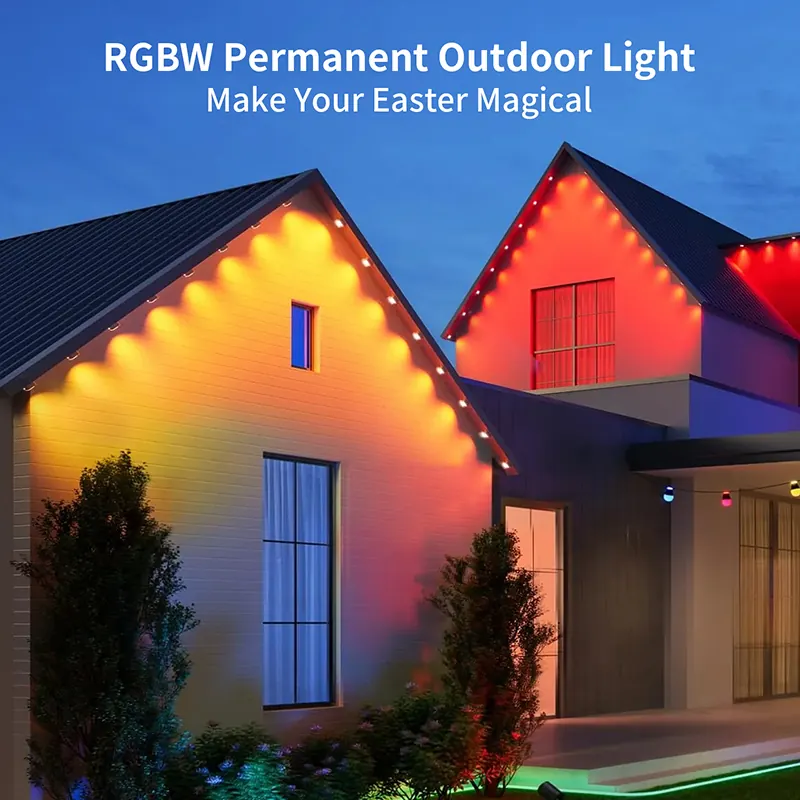

Warm amber accent lighting along gables and eaves
Warm amber accent lighting along gables and eaves

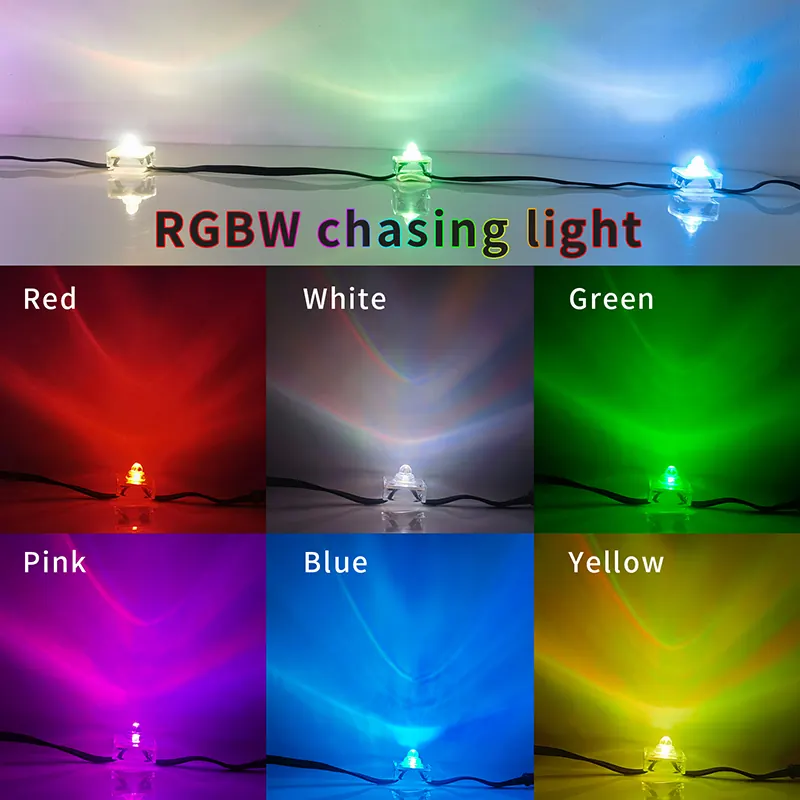

Solid colour options: red, white, green, pink, blue and yellow
Solid colour options: red, white, green, pink, blue and yellow

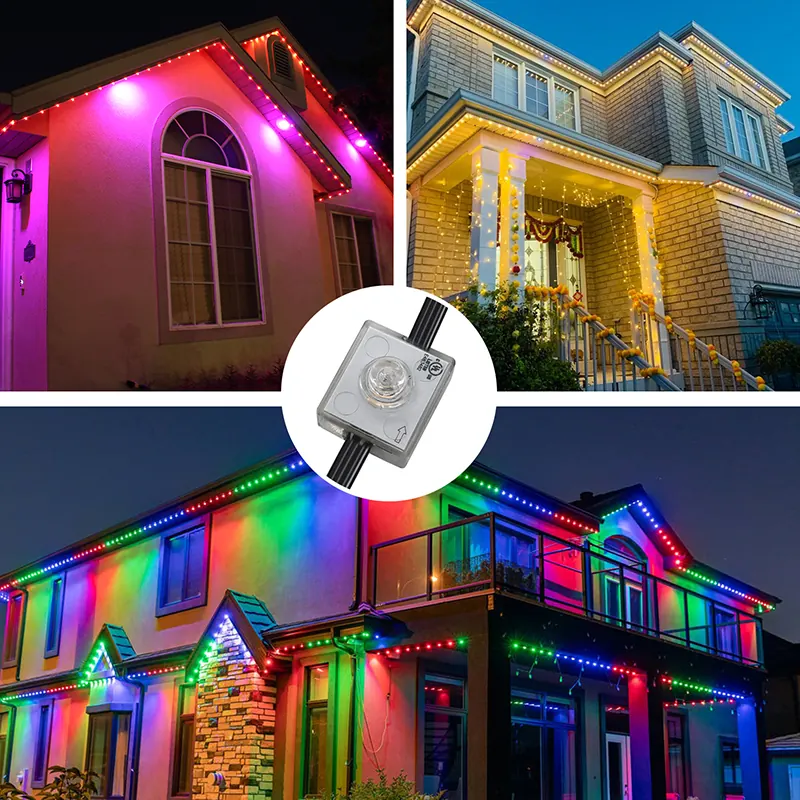

Roofline and eaves lighting in pink, warm white and multicolour scenes
Roofline and eaves lighting in pink, warm white and multicolour scenes

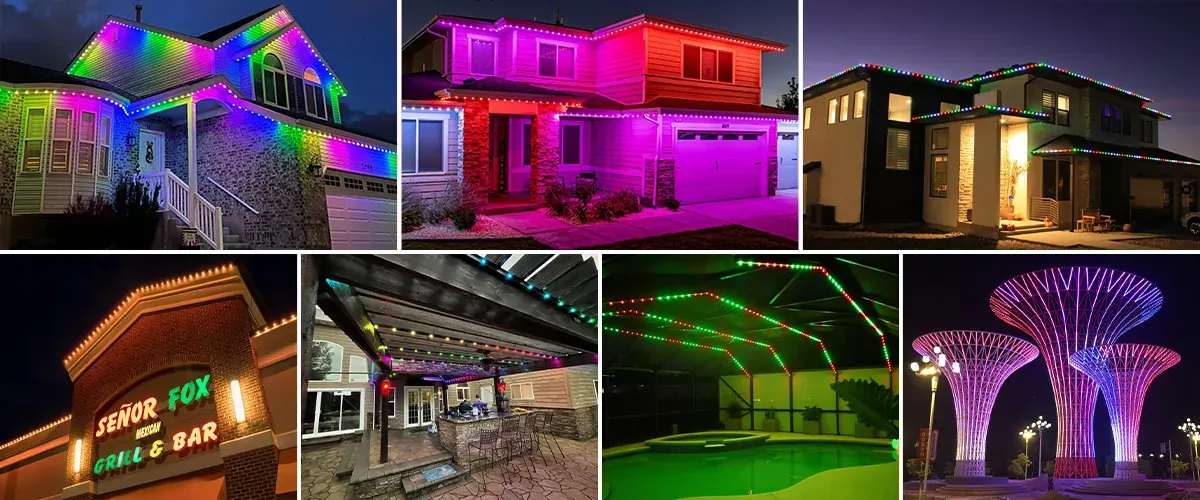

Collection of permanent lighting scenes on homes and businesses
Collection of permanent lighting scenes on homes and businesses

Pattern photos show the same style of RGBW pixel lighting; your home's look depends on light spacing and roofline.

Ready to see it on your home?

We install across Calgary, Edmonton, Chestermere and BC's Lower Mainland. Prefer DIY? Kits are sold as Maple Glow LED. See service areas.
